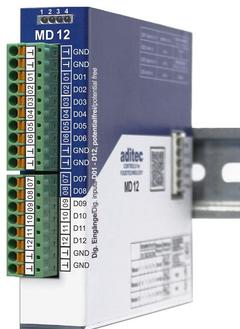

MD 12 - Digital Input Module

Digital Input Module for installation in a switching cabinet (only in connection with the controllers MS120/MS220).

With 12 digital inputs
CAN interface for communication with the base unit and for programming
With connection of max. 3 MD12 modules to the base unit MS120/MS220, there are up to 48 digital inputs available
BxHxD 22,5 x 104 x 106,5 mm.

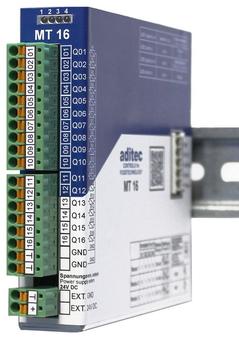

MT16 - Transistor Output Module

Transistor Output Module for installation in a switching cabinet (only in connection with the controllers MS120/MS220).

With 16 24V transistor outputs for relay-control.
CAN interface for communication with the base unit and for programming.
With connection of max. 3 MT16 modules to the base unit MS120/MS220, there are up to 72 outputs available.
BxHxD 22,5 x 104 x 106,5 mm.

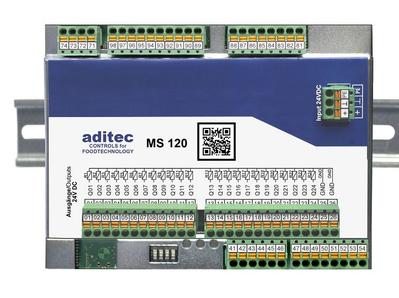

MS 120 - Freely programmable controller

Controller for installation in a switching cabinet (in connection with the TP1011/TP1211).
Can be used in cooking, smoking, climatic and maturing chambers and in intensive cooling chambers.
Can also be used to control defrosting or freezing processes.
With 24 transistor outputs for relay-control (expandable up to 72 outputs via additional modules MT16), 12 digital inputs (expandable up to 48 inputs via additional modules MD12) as well as several analogue in- and outputs (expandable via several additional modules) and 48 processes.
HxBxD 104 x 136 x 110 mm (depth with terminals 111,4mm).

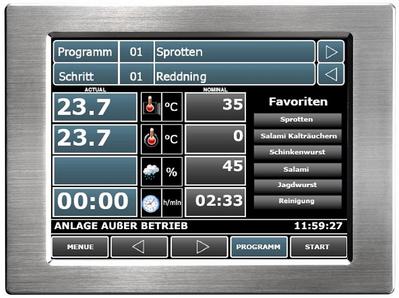

Touchpanel TP 1011 / 1211

Industrial-quality panel with touch screen, 10,4"/12,1" TFT display,  various interfaces and a housing of standard industrial quality for universal cooking and smoking units as well as climatic smoke and maturing chambers.

The aditec Touch Panel (TP1011, TP1211) will be used in connection with the freely programmable controllers (PLC/SPS) MS110 or MS120.

Aditec TP 1011/ 1211 Series Controllers

TALK TO US NOW.  07 3393 6552

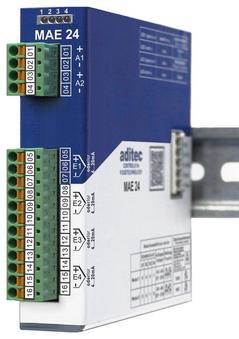

MAE 24 - Analogue In-/Output Module

Analogue In-/Output Module  for installation in a switching cabinet (only in connection with the controllers MS120/MS220).

With 4 universal analogue inputs and 2 analogue outputs.
CAN interface for communication with the base unit and for programming.
With connection of max. 2 MAE24 modules to the base unit MS120/MS220, there are up to 14 analogue inputs und 6 analogue outputs available.
BxHxD 22,5 x 104 x 106,5 mm.

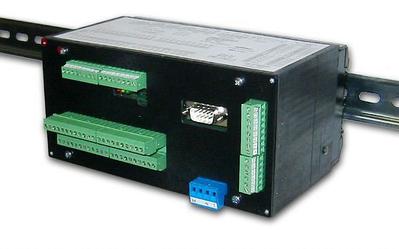

MS 110 - Freely programmable controller

Controller for installation in a switching cabinet (in connection with the TP1011/TP1211).
With 20 transistor outputs for relay activation (expandable to 40) and 12 digital inputs (expandable to 24) as well as various analogue in and outputs and 48 processes.
1-99 programmes with each 1-99 programme steps, can be saved
HxWxD (total) 183 x 90 x 139 mm.
